Pilot Model Demonstrations

    Using TPV (Task-Pilot-Model) Architecture to represent realistic pilot-in-the-loop behavior.

These videos demonstrate use of the RHE SimulinkŪ software to generate TPV model simulations of various fixed-wing and helicopter flight tasks and maneuvers. In some cases the flight dynamics are modeled using NAVAIR's CASTLE software, in others RHE RotorGen2 math models drive animations based on FlightGear 3D models.

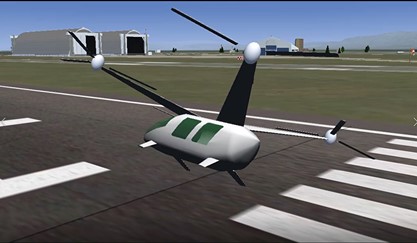

TPV Model Example: Montage of TPV model features

  montage

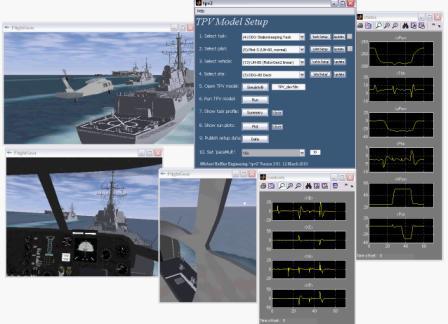

This example illustrates several features of the current TPV model structure programmed in Simulink and includes the setup GUI, some time-history plots, and 3 FlightGear windows showing the view of an outside observer and the forward and side windows from the cockpit.

The maneuver consists of a series of reposition maneuvers over the deck starting with a rearward movement, sideward, vertical, directional, and back to the starting point. The pilot is set for "normal" behavior with inner-loops adjusted to 2 rad/s crossover frequency. A moderate level of noise is injected into pilot cueing.

This 60sec flight task runs first at a faster-than-realtime rate (about 5x), then is repeated at realtime.

Allow for a few seconds to download the .avi file (about 50MB).

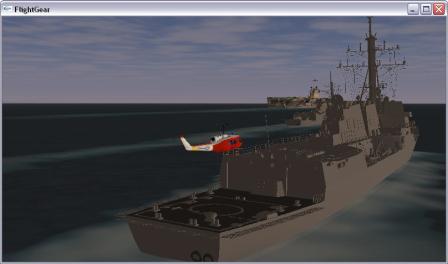

TPV Model Example: UH-1 Stationkeeping Maneuver over DDG deck

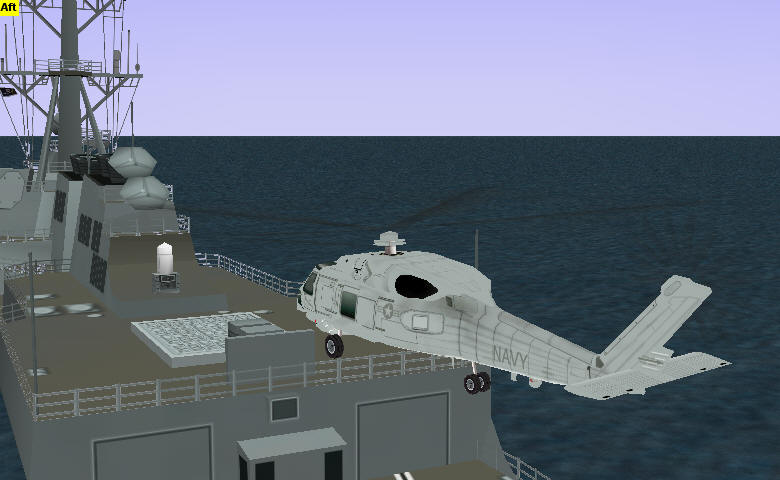

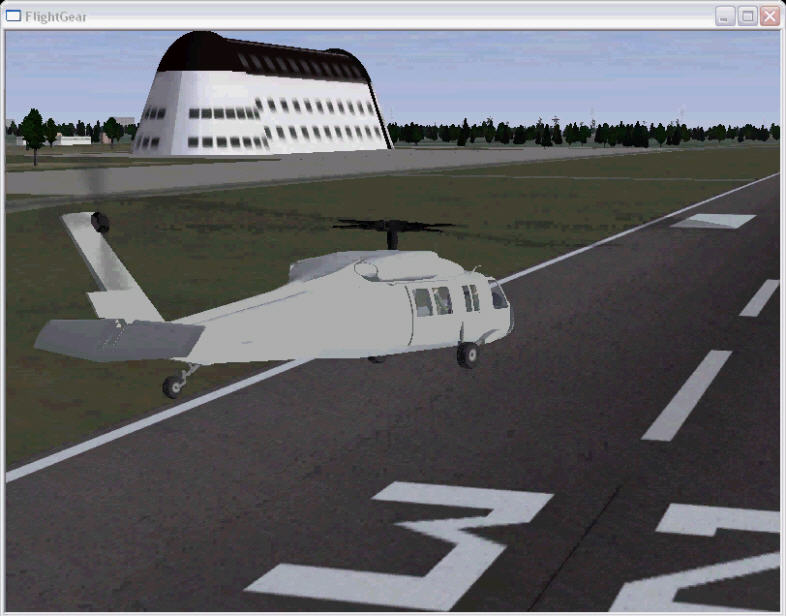

        TPV Model Example: SH-60 Stationkeeping Maneuver

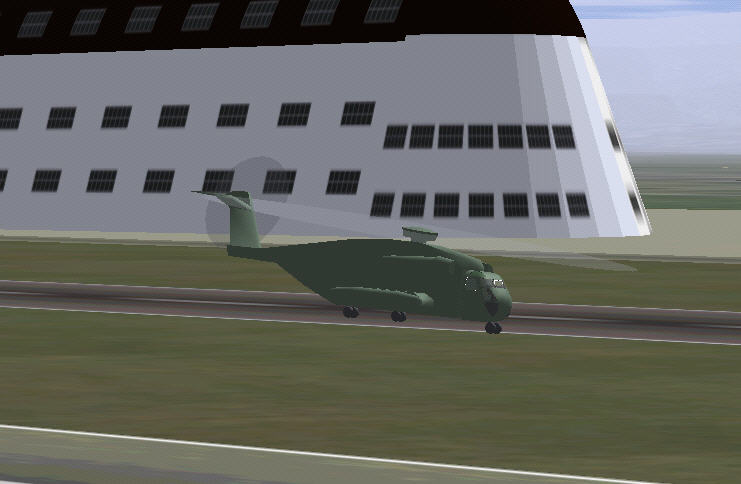

                   TPV Model Example: CH-53ADS-33 Depart/Abort Maneuver





    TPV Model Example: SH-60 approach to and departure from DDG



                                 Task description

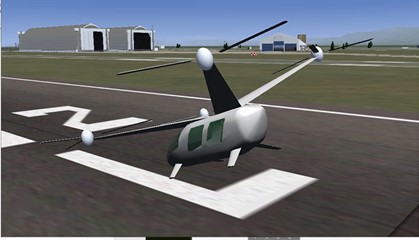

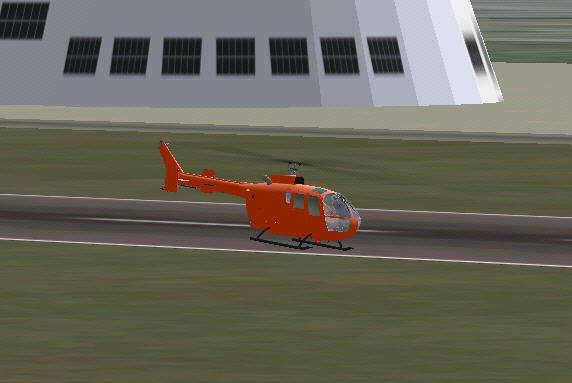

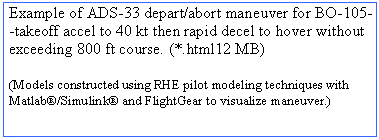

  TPV Model Example: BO-105 ADS-33 Depart/Abort Maneuver

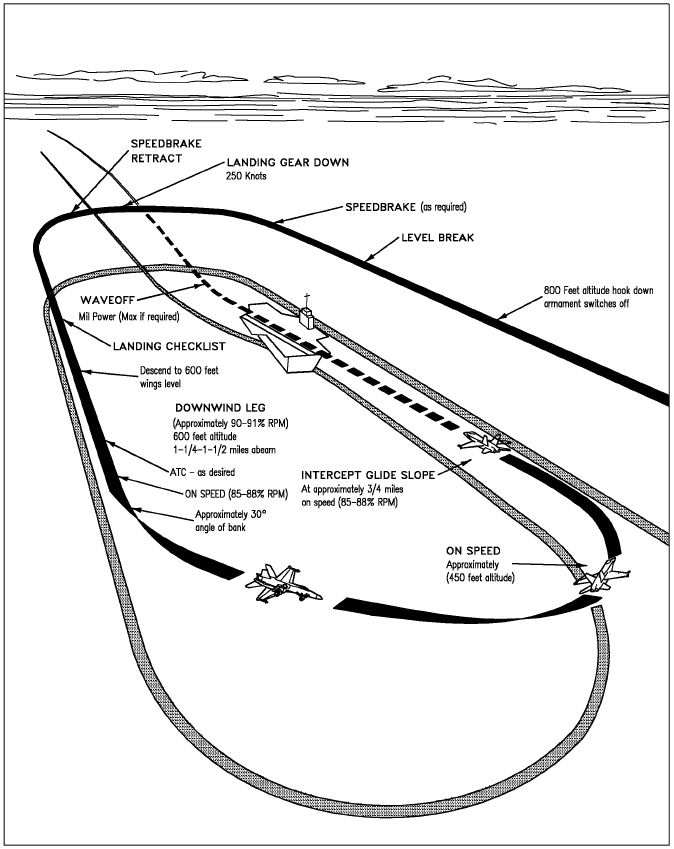

    TPV Model Example: F/A-18 landing on CVN





             TPV Model Example: F/A-18 landing on CVN showing enhanced F/A-18 model in moderate turbulence.

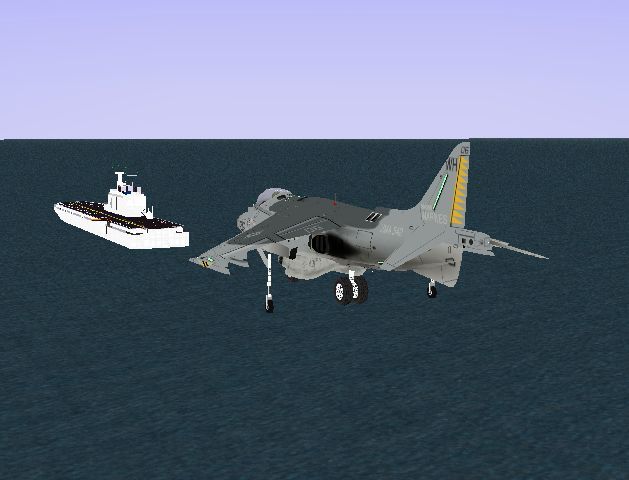

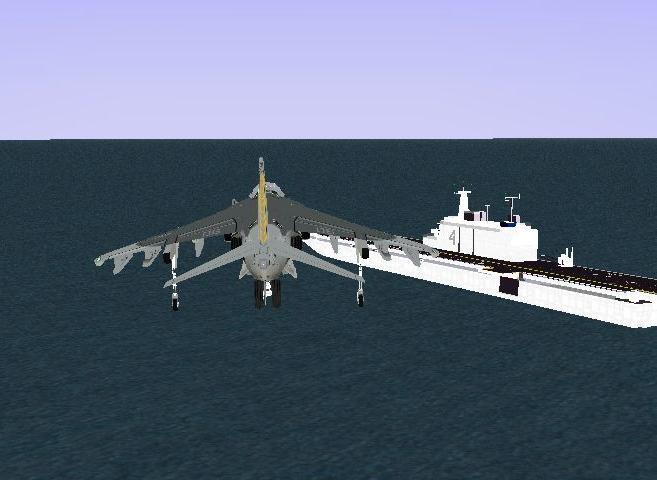

    TPV Model Example: AV-8B 45deg approach to LHA



                 TPV Model Example: AV-8B normal approach to LHA





   TPV Model Example: AV-8B sea state 5 approach to LHA





    TPV Model Example: SH-60 approach to and departure from DDG (Revised based on pilots' critiques)

             Task description (Revised)

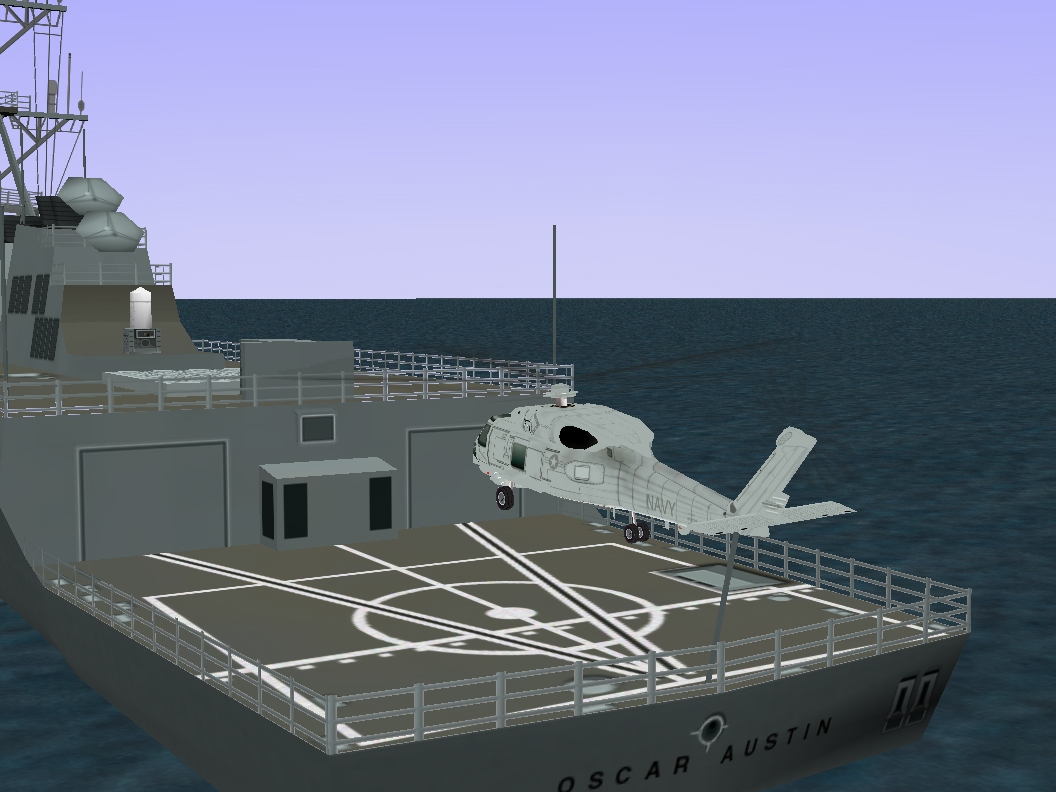

                       TPV Model Example: SH-60 hover maneuvers over DDG
